Barriers

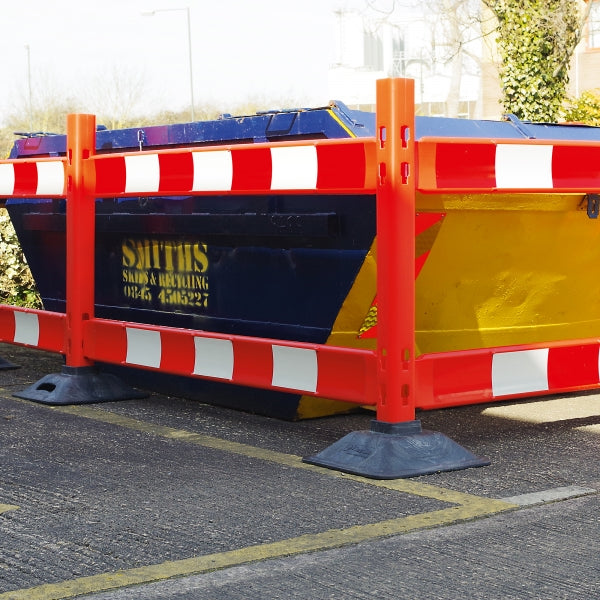

TRAFFIC-LINE Barrier Board Systems
Printed to order on your choice of material, and built to stay readable outdoors for as long as the guarantee says.
Completely recyclable, an effective and versatile system for traffic and pedestrian control, and are ideally suited to cordon off road works, excavation sites and building sites
- Now much improved with stronger boards more easily fixed into redesigned upright posts moulded in HD Polyethylene (HDPE)
- Bases are manufactured from recycled materials and can be doubled up for greater stability
- Compatible with existing systems, so no need to scrap your existing system
- Improved for fast and easy assembly with reflective panels for high visibility in poor light
- Conforms with the following standards:
- Reflectivity to BSEN 12899-1
- Chapter 8 – The Traffic Signs Manual
- The Red Book 2013
- BSEN 8442
- Standard BS 8442:2006 states all temporary traffic barriers must be able to withstand 3 different classes of wind speed with the use of ballast as below:
- Class A: 26.3m/s (58mph)
- Class B: 17.6m/s (39mph)
- Class C: 8.7m/s (19mph)
Please Note: As a direct ship product, this item may be subject to longer lead times.
- MIRA Wind Tunnel tests confirm stability of the system as below:
- Assembled format Windspeed (mph)
- Recommended Ballast weight (kg)
- 2 posts, 2 Planks, 2 Bases 20.6 0
- 2 posts, 2 Planks, 2 Bases 40.3 10
- 2 posts, 2 Planks, 2 Bases 59.8 25
- 4 posts, 8 Planks, 4 Bases (Boxed) 61.6 20
- Barrier boards:
- Sizes: 1,250, 2,000
- Material: HDPE
- Colour: Orange with red/white reflective panels
- Post:
- 1,170mm H
- Material: HDPE
- Colour: Orange
- Base:
- Material: Recycled material
- Colour: Black
